Rotary switches for printed circuit

Same functionality as rotary switches to be soldered by wire, these models are adapted for fixing on printed circuits. The layout on printed circuits is not configurable.

Options: see wire welding rotary switches

Contact us to order

ROHS and SVHC certificates on request
Picture Name Index angle Maximum number of positions Shaft diameter Electrical values* Dimension of switch body Technical data sheet
electronic rotary switch mck 12 MCK 12 30°
60°
90°
12 Clé Micro Kaba® 50 V
0,25 A
1 A
5 W
24,5 x 19 x 19 mm
electronic rotary switch série k K range
KB : activated by knurled knob
KD: panel mount activated by screw driver
KF: activated by screwdriver
KM: activated by serrated engraved knob
KX: activated by special square tool (on request)
30°
60°
45°
90°
12
(excluding KFL and KB, no axis on KX)
4 mm 50 V
0,25 A
1 A
5 W
Depending on the model
electronic rotary switch caf 10sp CAF 10SP 36° 10 4 mm 150 V
0,3 A
1,5 A
25 W
∅16,5 mm
Variable depth
electronic rotary switch caf 10ci CAF 10CI 36° 10 4 mm 150 V
0,3 A
1,5 A
25 W
∅16,5 mm
Variable depth
electronic rotary switch caf 12sp CAF 12SP 30°
60°
12 4 mm 150 V
0,3 A
1,5 A
25 W
∅16,5 mm
Variable depth
electronic rotary switch caf 12ci CAF 12CI 30°
60°
12 4 mm 150 V
0,3 A
1,5 A
25 W
∅16,5 mm
Variable depth
electronic rotary switch caf 16sp CAF 16SP 22°30'
45°
16 4 mm 150 V
0,3 A
1,5 A
25 W
∅19,6 mm
Variable depth
electronic rotary switch caf 16ci CAF 16CI 22°30'
45°
16 4 mm 150 V
0,3 A
1,5 A
25 W
∅19,6 mm
Variable depth
electronic rotary switch cag 12sp CAG 12SP 30°
60°
90°
12 6 mm 300 V
1 A
5 A
100 W
∅32 mm x 24,30 mm
electronic rotary switch sub a10sp SUB A10SP 36°
72°
10 6 mm 150 V
0,5 A
3 A
45 W
25,7 x 17 mm
Variable depth
electronic rotary switch sub a12sp SUB A12SP 30°
60°
90°
120°
12 6 mm 150 V
0,5 A
3 A
45 W
25,7 x 17 mm
Variable depth
electronic rotary switch mini a12sp MINI A12SP 30°
60°
90°
120°
12 6 mm 200 V
1 A
5 A
75 W
35,7 x 33 mm
Variable depth
electronic rotary switch mini a20sp MINI A20SP 18°
36°
72°
90°
20 6 mm 200 V
1 A
5 A
80 W
52,2 x 45,5 mm
Variable depth
electronic rotary switch mini a24sp MINI A24SP 15°
30°
45°
60°
90°
120°
24 6 mm 200 V
1 A
5 A
80 W
52,2 x 45,5 mm
Variable depth
electronic rotary switch mini a28sp MINI A28SP 12°51'
25°42'
51°25'
28 6 mm 200 V
1 A
5 A
80 W
52,2 x 45,5 mm
Variable depth
electronic rotary switch mini a32sp MINI A32SP 11°15'
22°30'
45°
32 6 mm 200 V
1 A
5 A
80 W
52,2 x 45,5 mm
Variable depth

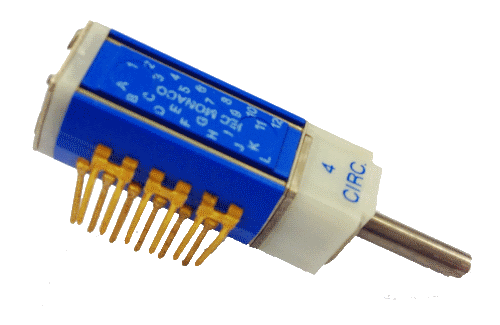

electronic rotary switch kr 10ci KR 10 CI 30°
60°
12 3 mm 100 V
0,07 A
0,2 A
15,8 x 10 mm
Variable depth
electronic rotary switch caf 12R CAF 12R 30°
60°
12 6 mm 150 V
0,3 A
1 A
∅16 mm
Variable depth
*Maximum voltage - Maximum current with cut - Maximum current without cut - Maximum switch rating
